Usage

Fabric conveyor belts are suitable for medium and long distance, heavy load and high speed transportation of materials, which is widely used in mines, metallurgy, architecture, ports, electricity, chemical industries, etc.

Characteristics

● NN fabric

- High stability

- Short pulley diameter

- High heat resistance

- Strong anti-shock

- Excellent adhesive force to rubber

● EP fabric

- Low elongation

- Strong anti-shock

- Excellent adhesive force to rubber

- High stability

- Temperature≤140℃

（It will decompose over 140℃）

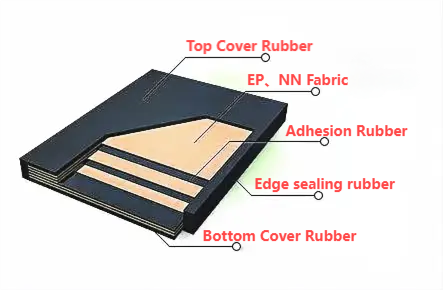

Structure

Standard Specifications

Strength(KN/m)	No.of plies	Carcass type	Belt width
Strength(KN/m)	No.of plies	Carcass type	300	400	500	600	750	800	900	1000	1050	1200	1400	1600	1800	2000	2200	2400	3000
160	2	NN / EP
250	2~3	NN / EP
315	2~4	NN / EP
400	2~4	NN / EP
500	2~5	NN / EP
630	3~6	NN / EP
800	3~6	NN / EP
1000	3~6	NN / EP
1250	3~6	NN / EP
1400	3~6	NN / EP
1600	4~6	NN / EP
2000	4~6	NN / EP
2500	5~6	NN / EP
3150	5~6	NN / EP
Note: It can be customized according to customers’ requirements.

Cover Grades

Grade	Tensile strength(min.)	Elongation at break(min.)	Abrasion(max.)
Grade	Mpa	%	mm³
H	24	450	120
D	18	400	100
L	15	350	200

In accordance with ISO14890-2013 standard.
The values will help to determine the appropriate cover compound for the application or for the materials carries.Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
