Usage
Oil resistant conveyor belts select the NBR with excellent oil resistant properties as the covers. The reinforced materials can be selected according to customers’ requirements. It’s suitable for conveying oily materials or the environment that exposure to a variety of working oil.
Characteristics
Low rate of volume change
High maintenance of strength
Wide application ranges
Steel cord composilion
 |
 |
Standard Specifications
| Strength grade | Tensile strength | Cord pitch | Cord diameter | breaking force(Min.) | cover thickness |
| (KN/m) | (mm) | (mm) | (KN) | (mm) | |
| ST-500 | 500 | 10 | 2.5 | 5.5 | 4 |
| ST-630 | 630 | 10 | 2.8 | 7 | 4 |
| ST-800 | 800 | 10 | 3 | 8.9 | 4 |
| ST-1000 | 1000 | 12 | 3.7 | 12.9 | 4 |
| ST-1250 | 1250 | 12 | 4.2 | 16.1 | 4 |
| ST-1400 | 1400 | 12 | 4.3 | 18 | 4 |
| ST-1600 | 1600 | 12 | 4.7 | 20.6 | 4 |
| ST-2000 | 2000 | 12 | 5.3 | 25.6 | 4 |
| ST-2250 | 2250 | 12 | 5.3 | 29 | 4 |
| ST-2500 | 2500 | 15 | 6.8 | 40 | 5 |
| ST-2800 | 2800 | 15 | 7 | 44.8 | 5 |
| ST-3150 | 3150 | 15 | 7.8 | 50.5 | 5.5 |
| ST-3500 | 3500 | 15 | 8.2 | 56 | 6 |
| ST-4000 | 4000 | 15 | 8.8 | 63.5 | 6.5 |
| ST-4500 | 4500 | 16 | 9.7 | 76.3 | 7 |
Note: Cover thickness, cord diameter, and cord pitch can be manufactured according to customer’s requirements.
Cover Grades
| Type | Rubber material | Permissible temperature ℃ | Application areas |
| COR | NBR/BR | -35~70 | Conveying products containing animal and vegetable oil andfatin cold areas. |
| MOR | NBR/SBR | -20~70 | Most products containing animal and vegetable oil andfat. |
| OR | NBR | -20~70 | Products containing mineral oil |
| HOR | NBR | -20~120 | Hot asphalt |

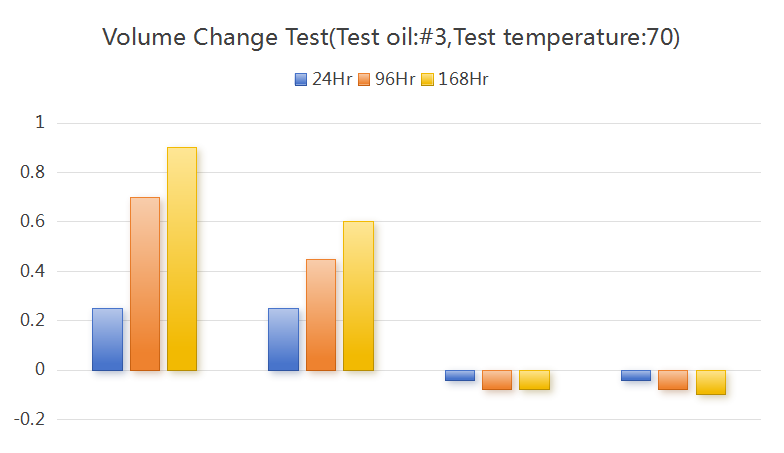

Volume Change Test
Oil Resistant Steel Cord Conveyor Belt
