Usage
It is suitable for conveying high temperature solid materials like sintering ore, coke, cement clinker, etc. which is used in metallurgical, cement, chemical industry and so on.
Characteristics
Developed new structure carcass materials will reduce the strength loss of heat aging during running, and thus will extend the working life.
The cover uses superior ethylene-propylene rubber or halogenate rubber which will enhance the high temperature resistant property of the rubber and reduce the loss of heat aging.

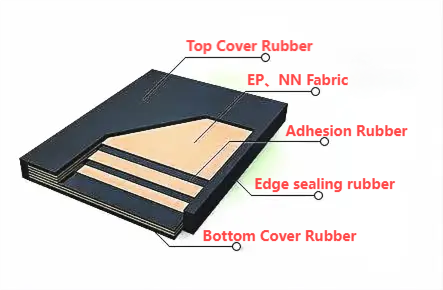

Structure
Standard Specifications
| Strength(KN/m) | No.of plies | Carcass type | Belt width | ||||||||||||||||
| 300 | 400 | 500 | 600 | 750 | 800 | 900 | 1000 | 1050 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 3000 | |||
| 160 | 2 | NN / EP | |||||||||||||||||
| 250 | 2~3 | NN / EP | |||||||||||||||||
| 315 | 2~4 | NN / EP | |||||||||||||||||
| 400 | 2~4 | NN / EP | |||||||||||||||||
| 500 | 2~5 | NN / EP | |||||||||||||||||
| 630 | 3~6 | NN / EP | |||||||||||||||||
| 800 | 3~6 | NN / EP | |||||||||||||||||
| 1000 | 3~6 | NN / EP | |||||||||||||||||
| 1250 | 3~6 | NN / EP | |||||||||||||||||
| 1400 | 3~6 | NN / EP | |||||||||||||||||
| 1600 | 4~6 | NN / EP | |||||||||||||||||
| 2000 | 4~6 | NN / EP | |||||||||||||||||
| 2500 | 5~6 | NN / EP | |||||||||||||||||
| 3150 | 5~6 | NN / EP | |||||||||||||||||
| Note: It can be customized according to customers’ requirements. | |||||||||||||||||||
Cover Grades
| Item | GB20021 Standard | Dongfeng Rubber Standard | |||||
| T1 | T2 | T3 | T4 | DFHR150 | DFHR180 | ||
| Test temperature | |||||||
| ≤100°℃ | ≤125°℃ | ≤150°℃ | ≤175°℃ | ≤150°℃ | ≤180°℃ | ||
| Permitted change range | |||||||
| Hardness | Difference before and after aging | +20 | +20 | ±20 | ±20 | ±10 | ±10 |
| Maximum after aging | 85 | 85 | 85 | 85 | 75 | 75 | |
| Tensile strength | Change rate of property % | -25 | -30 | -40 | -40 | ±15 | ±25 |
| Minimum value after aging | 12 | 10 | 5 | 5 | 10 | 8 | |
| Elongation at break | Change rate after aging % | -50 | -50 | -55 | -55 | ±15 | ±15 |
| Minimum value after aging | 200 | 200 | 180 | 180 | 400 | 350 | |
Heat Resistant, High Temperature Resistant Fabric Conveyor Belt
Can you accept small quantities?
Yes, accept small quantity, fast delivery
Do you have pre-shipment inspection procedures?
Yes, we always test the products before delivery.
Can I take samples for testing?
Yes, samples can be sent for testing before bulk ordering.
When is the delivery time?
Inventory orders within 7-15 days, for oem and odm orders, the specific time depends on the actual situation.
What are the terms of payment?
Wire transfer or letter of credit, Western Union, Alipay, etc.
