Usage
Fabric cord resistant conveyor belts are suitable for conveying materials outdoors in freezing area, cold storage and etc.
Characteristics
The product selects nylon canvas or EP canvas as carcass. Cover rubber selects a blend of NR and BR, which has the properties of high elasticity, shock resistance, cold resistance and etc. It can work normally under the conditions of -60℃

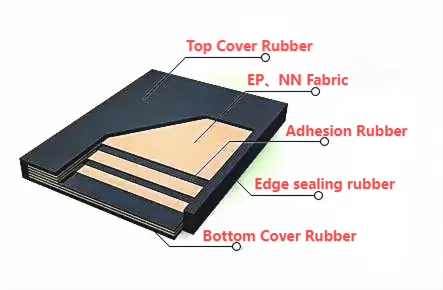

Structure
Standard Specifications
| Strength(KN/m) | No.of plies | Carcass type | Belt width | ||||||||||||||||
| 300 | 400 | 500 | 600 | 750 | 800 | 900 | 1000 | 1050 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 3000 | |||
| 160 | 2 | NN / EP | |||||||||||||||||
| 250 | 2~3 | NN / EP | |||||||||||||||||
| 315 | 2~4 | NN / EP | |||||||||||||||||
| 400 | 2~4 | NN / EP | |||||||||||||||||
| 500 | 2~5 | NN / EP | |||||||||||||||||
| 630 | 3~6 | NN / EP | |||||||||||||||||
| 800 | 3~6 | NN / EP | |||||||||||||||||
| 1000 | 3~6 | NN / EP | |||||||||||||||||
| 1250 | 3~6 | NN / EP | |||||||||||||||||
| 1400 | 3~6 | NN / EP | |||||||||||||||||
| 1600 | 4~6 | NN / EP | |||||||||||||||||
| 2000 | 4~6 | NN / EP | |||||||||||||||||
| 2500 | 5~6 | NN / EP | |||||||||||||||||
| 3150 | 5~6 | NN / EP | |||||||||||||||||
| Note: It can be customized according to customers’ requirements. | |||||||||||||||||||
Cover Grades
| Grade | Tensile strength(min.) | Elongation at break(min.) | Abrasion resistance(max.) |
| Mpa | % | mm³ | |
| H | 24 | 450 | 120 |
| D | 18 | 400 | 100 |
| L | 15 | 350 | 200 |
| Tensile cold-resistant coefficient C1(-45℃) | ≥0.3 | ||
| Tensile cold-resistant coefficient C2(-50℃) | ≥0.2 | ||
| Note: C1 — working temperature -45°C~60*℃; C2 — working temperature -60°C~60°℃ | |||
Cold Resistant Fabric Conveyor Belt
Can you accept small quantities?
Yes, accept small quantity, fast delivery
Do you have pre-shipment inspection procedures?
Yes, we always test the products before delivery.
Can I take samples for testing?
Yes, samples can be sent for testing before bulk ordering.
When is the delivery time?
Inventory orders within 7-15 days, for oem and odm orders, the specific time depends on the actual situation.
What are the terms of payment?
Wire transfer or letter of credit, Western Union, Alipay, etc.
