Usage
Oil resistant conveyor belts select the NBR with excellent oil resistant properties as the covers. The reinforced materials can be selected according to customers’ requirements. It’s suitable for conveying oily materials or the environment that exposure to a variety of working oil.
Characteristics
- Low rate of volume change
- High maintenance of strength
- Wide application ranges

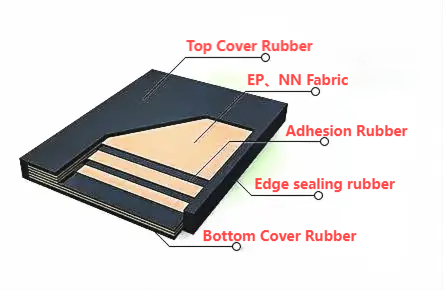

Structure
Standard Specifications
| Strength(KN/m) | No.of plies | Carcass type | Belt width | ||||||||||||||||
| 300 | 400 | 500 | 600 | 750 | 800 | 900 | 1000 | 1050 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 3000 | |||
| 160 | 2 | NN / EP | |||||||||||||||||
| 250 | 2~3 | NN / EP | |||||||||||||||||
| 315 | 2~4 | NN / EP | |||||||||||||||||
| 400 | 2~4 | NN / EP | |||||||||||||||||
| 500 | 2~5 | NN / EP | |||||||||||||||||
| 630 | 3~6 | NN / EP | |||||||||||||||||
| 800 | 3~6 | NN / EP | |||||||||||||||||
| 1000 | 3~6 | NN / EP | |||||||||||||||||
| 1250 | 3~6 | NN / EP | |||||||||||||||||
| 1400 | 3~6 | NN / EP | |||||||||||||||||
| 1600 | 4~6 | NN / EP | |||||||||||||||||
| 2000 | 4~6 | NN / EP | |||||||||||||||||
| 2500 | 5~6 | NN / EP | |||||||||||||||||
| 3150 | 5~6 | NN / EP | |||||||||||||||||
| Note: It can be customized according to customers’ requirements. | |||||||||||||||||||
Cover Grades
| Type | Rubber material | Permissible temperature ℃ | Application areas |
| COR | NBR/BR | -35~70 | Conveying products containing animal and vegetable oil andfatin cold areas. |
| MOR | NBR/SBR | -20~70 | Most products containing animal and vegetable oil andfat. |
| OR | NBR | -20~70 | Products containing mineral oil |
| HOR | NBR | -20~120 | Hot asphalt |

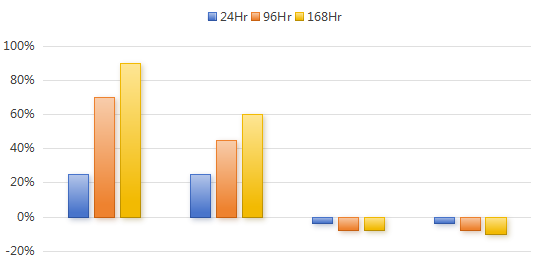

Volume Change Test
Volume Change Test(Test oil: #3,Test temperature: 70°℃)
Oil Resistant Fabric Conveyor Belt
Can you accept small quantities?
Yes, accept small quantity, fast delivery
Do you have pre-shipment inspection procedures?
Yes, we always test the products before delivery.
Can I take samples for testing?
Yes, samples can be sent for testing before bulk ordering.
When is the delivery time?
Inventory orders within 7-15 days, for oem and odm orders, the specific time depends on the actual situation.
What are the terms of payment?
Wire transfer or letter of credit, Western Union, Alipay, etc.
