Usage
It’s suitable for transportation of hard and sharp materials in larger drop height occasions, used in lines of mines, ports, electricity, metallurgy, chemical industry, coalmines, etc.
Characteristics
The anti- tear conveyor belt has highly extensible transverse polyester or nylon canvas evenly arranged in the top cover (or both top and bottom cover) of the steel cord carcass. The anti-tear layer is perpendicular to the running direction of belt. When the belt conveys hard and sharp materials, the anti-tear layer can stop it from being pierced. Even if the belt is pierced, the anti-tear layer can still prevent it from being torn.

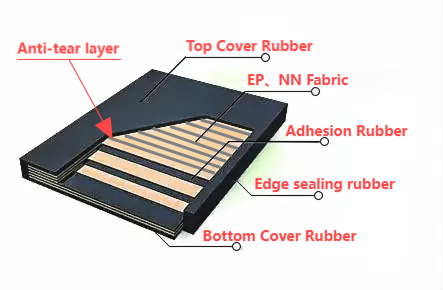

Structure
Standard Specifications
| Strength(KN/m) | No.of plies | Carcass type | Belt width | ||||||||||||||||
| 300 | 400 | 500 | 600 | 750 | 800 | 900 | 1000 | 1050 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 3000 | |||
| 160 | 2 | NN / EP | |||||||||||||||||
| 250 | 2~3 | NN / EP | |||||||||||||||||
| 315 | 2~4 | NN / EP | |||||||||||||||||
| 400 | 2~4 | NN / EP | |||||||||||||||||
| 500 | 2~5 | NN / EP | |||||||||||||||||
| 630 | 3~6 | NN / EP | |||||||||||||||||
| 800 | 3~6 | NN / EP | |||||||||||||||||
| 1000 | 3~6 | NN / EP | |||||||||||||||||
| 1250 | 3~6 | NN / EP | |||||||||||||||||
| 1400 | 3~6 | NN / EP | |||||||||||||||||
| 1600 | 4~6 | NN / EP | |||||||||||||||||
| 2000 | 4~6 | NN / EP | |||||||||||||||||
| 2500 | 5~6 | NN / EP | |||||||||||||||||
| 3150 | 5~6 | NN / EP | |||||||||||||||||
| Note: It can be customized according to customers’ requirements. | |||||||||||||||||||
Cover Grades
| Grade | Tensile strength(min.) | Elongation at break(min.) | Abrasion(max.) |
| Mpa | % | mm³ | |
| H | 24 | 450 | 120 |
| D | 18 | 400 | 100 |
| L | 15 | 350 | 200 |
| Ka | 15 | 350 | 200 |
| Note: Ka for flame-resistant and anti-static belts in accordance with ISO340 and ISO284. | |||
In accordance with ISO15236-2016 standard.
The values will help to determine the appropriate cover compound for the application or for the materials carries. Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
Anti-tear Fabric Conveyor Belt
Can you accept small quantities?
Yes, accept small quantity, fast delivery
Do you have pre-shipment inspection procedures?
Yes, we always test the products before delivery.
Can I take samples for testing?
Yes, samples can be sent for testing before bulk ordering.
When is the delivery time?
Inventory orders within 7-15 days, for oem and odm orders, the specific time depends on the actual situation.
What are the terms of payment?
Wire transfer or letter of credit, Western Union, Alipay, etc.
